John Deere
Z 665
EZtrak residential zero-turn mower · 27 HP V-twin · 60in deck
John Deere Z665 EZtrak zero-turn mower on the driveway at New Hope — yellow seat, green deck with John Deere wordmark and Z665 model badge, the house visible in the background.

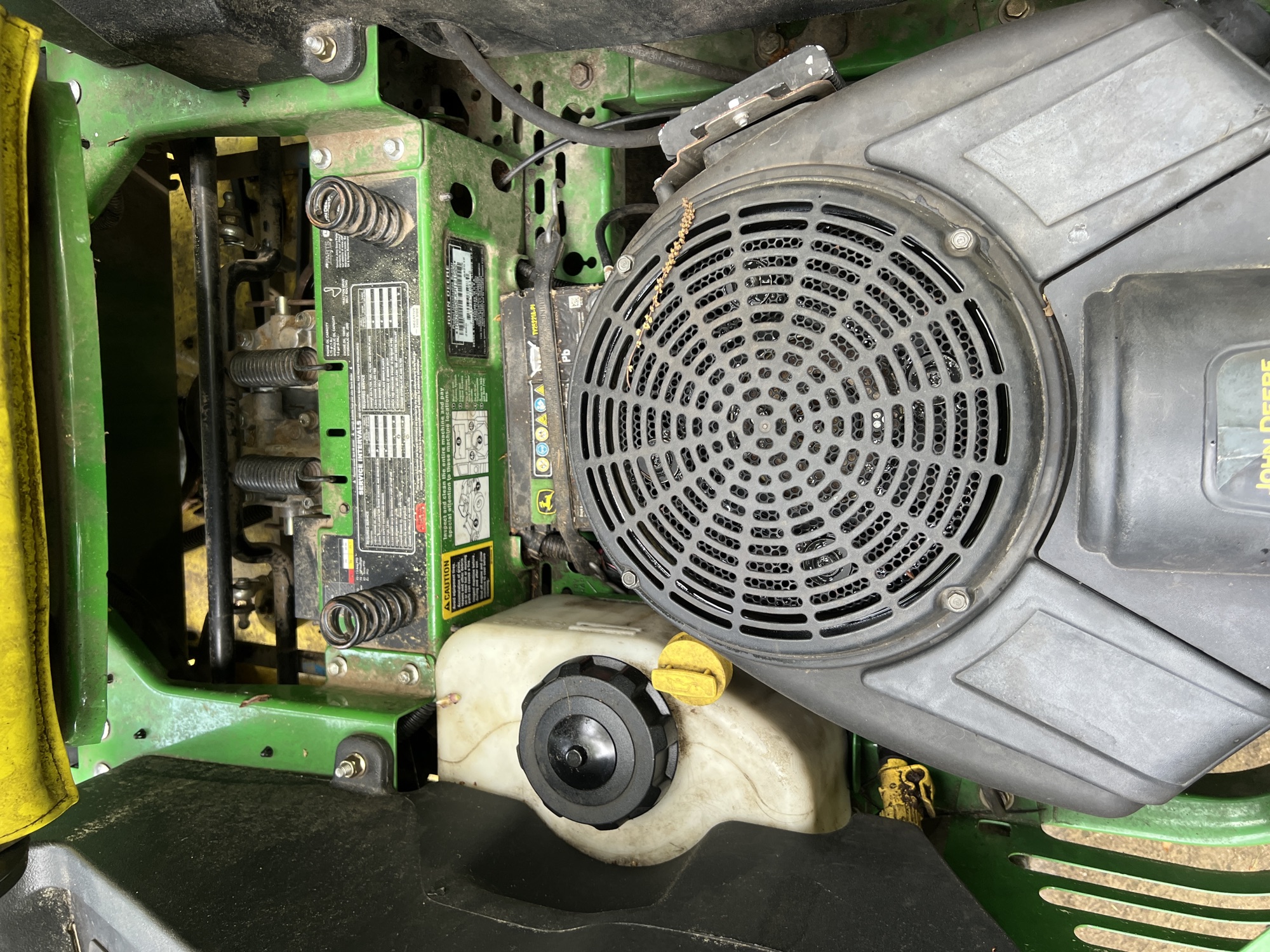

Z665 engine bay — twin-cylinder Briggs & Stratton air-cooled engine under the hood, plastic intake cooling fan grille visible, fuel tank with the yellow vented cap and the hydraulic-suspension springs visible to the left. Captured 26 May 2026 during the grounds-equipment audit. Required-service interval decal (positive-this-side) on the Z665 frame — daily / initial 8-or-50-hour / yearly-or-every-50-hours columns covering engine-oil check, muffler/intake-screens, safety systems, fuel level, mower-deck wash, engine-oil change (10W30), spindle lubrication, hydraulic oil + filter. Fuse legend visible at the bottom (F1-F4). Required-service interval decal (negative-this-side) — capacities + 100/200/400-hour service columns. Engine oil capacity 1.75qt (1.6L) · hydraulic oil 1.6gal (6.06L) · engine oil 10W30 · hydraulic oil J20D · traction-drive belt-routing diagram visible top-right. John Deere Product Identification Number (PIN) plate riveted to the Z665 frame near the fuse block — PIN 1M0Z665XJCM121500, Model Z665, DOM 042512 (April 25 2012), barcode 759936-75083, conforms to ANSI B71.1-2003, emission family CJDXPNHEQE04, assembled in Moline IL USA. Canonical identifier for warranty, parts, recall lookup.
Model
John Deere Z665 EZtrak (residential zero-turn)
Engine
27 HP V-twin · OHV (model variant to confirm: B&S Endurance Series typical)
Cutting deck
60in mower deck (typical Z665 spec)
Serial number / PIN
1M0Z665XJCM121500 · captured from the data plate near the fuse block · barcode 759936-75083 · use this PIN for warranty lookups, parts orders, and recall searches
Date of manufacture
25 April 2012 · DOM stamp 042512 (MM/DD/YY) on the PIN plate · assembled in Moline, IL USA · conforms to ANSI B71.1-2003
Emission family
CJDXPNHEQE04 · meets U.S. EPA EVAP standards · complies with Canadian ICES-002 spark-ignition standard
Fluid capacities
Engine oil 1.75 qt (1.6 L) 10W30 · Hydraulic oil 1.6 gal (6.06 L) J20D · per the service-interval decal photographed 2026-05-26
Hours (last logged)
TBD — hour meter on the dash; log on first service entry after this audit
Location
pa · 6279 Greenhill Road, New Hope PA 18938
Category
Garden equipment · residential zero-turn for the open lawn (the Honda HRX-217 handles trim and tight spots)
Purchased
Date / dealer / purchase price TBD
Current status
Just fully serviced — 17 May 2026 at N&J General Repair (Branchburg, NJ). Full annual maintenance plus crankshaft seal replacement. Ready for season. Next steward action: locate the 13-digit PIN + hour meter reading for the fact panel.
Manufacturer resources

Service log

17 May 2026 Lawn Mower Repair and Maintenance Paid · Zelle · 20 May 2026

N&J General Repair LLC (954 Route US 202, Branchburg, NJ 08876 · 848-702-0153 · salesperson Nidia Cordero · invoice #0024). Labor and parts: $500 (tax inc.) — total $500.

Line items:

  • Fuel Filter Changed
  • Air filter changed
  • Oil and filter changed (engine)
  • Crankshaft seal replacement
  • Hydro oil changed
  • Sharpen the blades

Paid 20 May 2026 via Zelle — $500.00 to NCS-NIDIAS Cleaning Services LLC (Manville, NJ). Same proprietor Nidia Cordero — invoicing entity (N&J General Repair LLC, Branchburg) and Zelle-registered recipient (NCS-NIDIAS Cleaning Services LLC, Manville) are two different LLCs under the same operator. First transaction with this recipient; Zelle added them to the recipient list on confirmation.

Receipt: 2026-05-20-n-and-j-general-repair-john-deere-z665-500usd.pdf
